1. Inbuilt Military Standard BMS: It has a built-in Multi-functional 120A continuous BMS, 360A for 30 sec peak, with high-quality IC and MosFET for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions. 2. Wide Applications: It can be used for solar energy 1
LiFePO4 batteries for solar storage: Cycle stability at high current, Fast charging within 1 hour, Deep discharge protection, overcharge protection, Voltage and temperature monitoring, Single cell monitoring, State of charge determination(SOC and SOH).
Li-ion Marine Batteries 12V 48V 240Ah: Light weight and strong power, sell to France and Russia and gain best praise, customers show it on their website to expand markets.
We use super long cycle life lithium ion battery 36v 20Ah ,with long cycle life up to 1000 ,safety and high performance in low temperature.
Item NO.:
OSN-18650-10S6PBrand:
KOK POWERShare :
12V Battery Pack Customized
24V Battery Pack Customized
36V Battery Pack Customized
48V Battery Pack Customized
60V Battery Pack Customized
72V Battery Pack Customized
82V Battery Pack Customized
96V Battery Pack Customized
| Nominal Voltage | 12V 24V 36V 48V 52V 60V 72V 82V 96V.ect |
| Nominal Capacity | 10Ah-480Ah.ect |
| Size/Dimension | Customized to your requirements |
| Max Charging Voltage | Customized to your requirements |
| Max Continuous Discharge Current | Customized to your requirements |
| Cut-off Discharging Voltage | Customized to your requirements |
| Peak/Pulse Current | Customized to your requirements |

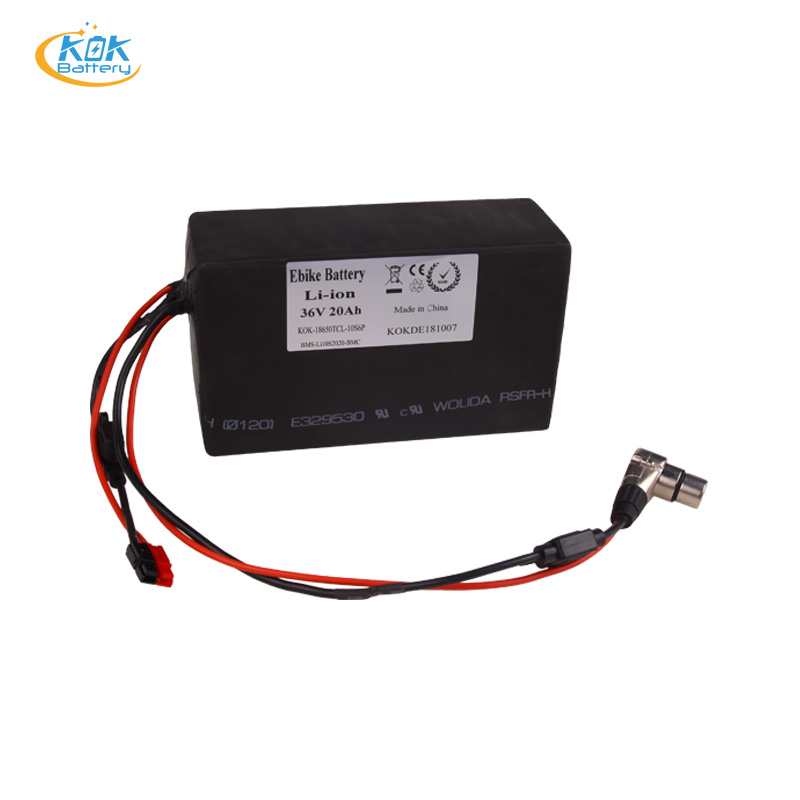

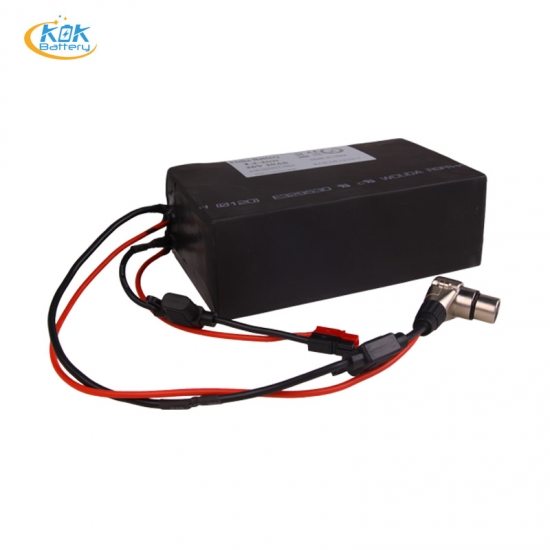

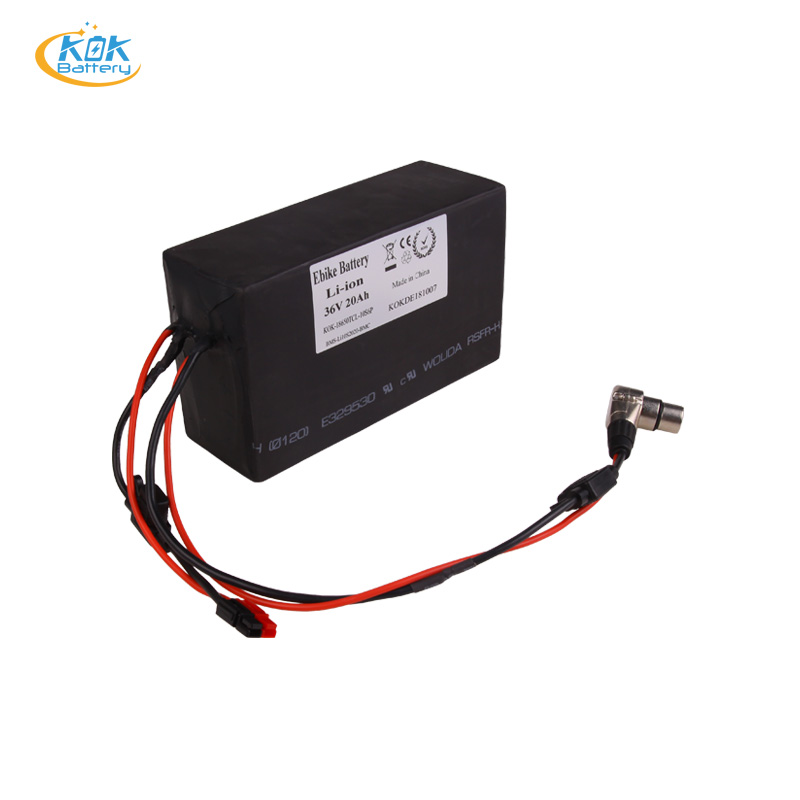

Product Item: smartbatteryeco.com POWER bike 36v 20ah lithium battery PE waterproof battery pack
Product Picture
Specifications
|
No. |
Items |
Specifications |
|
1 |
Nominal Voltage |
37V |
|
2 |
Nominal Capacity |
20Ah |
|
3 |
Cell inside |
18650 cell |
|
4 |
Configuration |
10S6P |
|
5 |
Standard Charge Current |
10A (0.2C) |
|
6 |
Max. Charge Current |
20A (1C) |
|
7 |
Protected Circuit Board(BMS) |
BMS-Li |
|
8 |
Continue Discharge Current |
20A |
|
9 |
Peak Discharge Current |
40A |
|
10 |
Full Charged Voltage |
42V(4.2V per cell) |
|
11 |
Charge Cut-off Voltage |
42.5V (4.25V per cell) |
|
12 |
Discharge Cut-off Voltage |
25V (2.5V per cell) |
|
13 |
Battery Net Weight |
3.28Kg |
|
14 |
Battery Dimension |
195*117*68 mm (with 20A constant BMS built in) |
|
15 |
Connector |
Input: 30A Anderson connector 18.5cm |
|
Output: Cannon connector(1+2-) 40cm |
||
|
16 |
Operating Temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C |
|
17 |
Storage Temperature |
(Recommended to store 20 ± 5°C for long term storage) |
|
18 |
Life Cycle |
>800 times (80% of initial capacity at 0.2C rate, IEC Standard) |
Related Products
We are OEM/ODM manufacturer which can cusmize what you need about batteries , smartbatteryeco.com POWER engage in producing electric scooter battery, lithium starting battery racing bike usage, solar battery and so on.
