1. Inbuilt Military Standard BMS: It has a built-in Multi-functional 120A continuous BMS, 360A for 30 sec peak, with high-quality IC and MosFET for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions. 2. Wide Applications: It can be used for solar energy 1
LiFePO4 batteries for solar storage: Cycle stability at high current, Fast charging within 1 hour, Deep discharge protection, overcharge protection, Voltage and temperature monitoring, Single cell monitoring, State of charge determination(SOC and SOH).
Li-ion Marine Batteries 12V 48V 240Ah: Light weight and strong power, sell to France and Russia and gain best praise, customers show it on their website to expand markets.
72v 30Ah Foldable Mobility Scooter Lifepo4 Battery Pack: Very much lower pice than other competitors; Powerful engergy :as the high voltage and light weight ,Motors acceleration speed performance are very good
Item NO.:
KOK-XC1820S12-7230Brand:
KOK POWERShare :

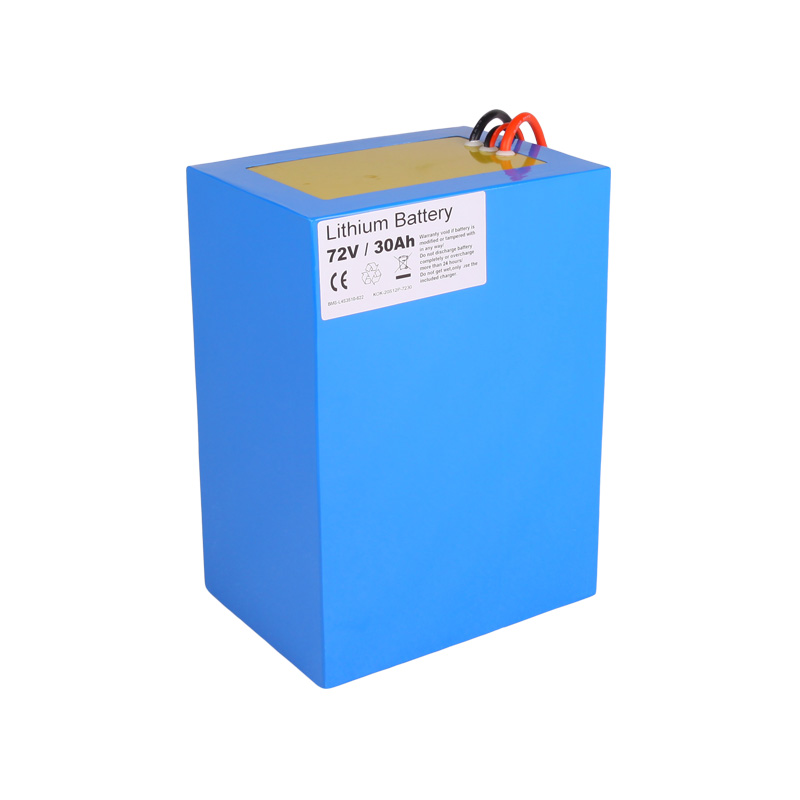

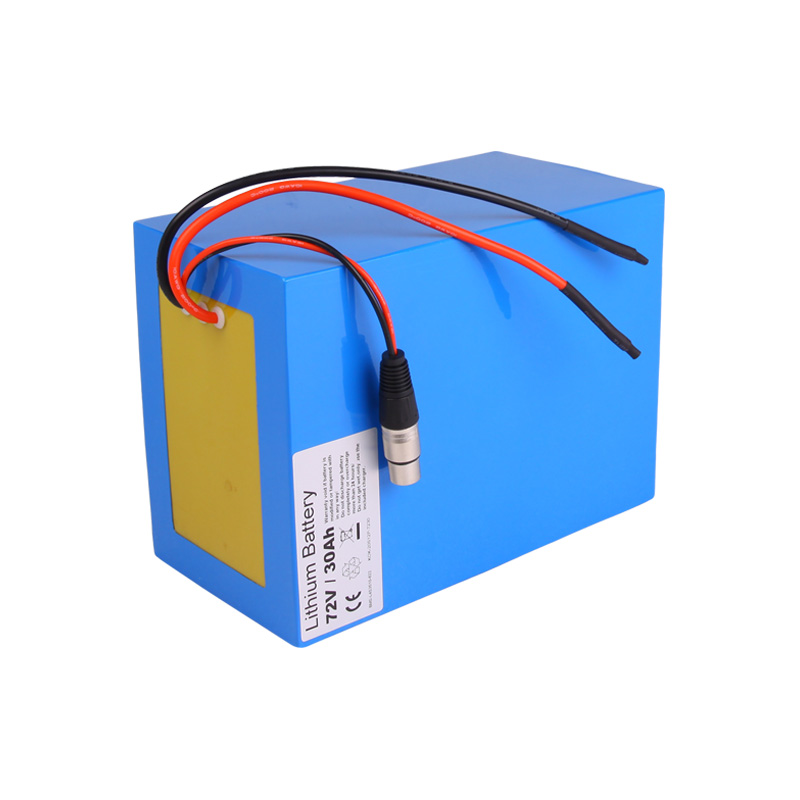

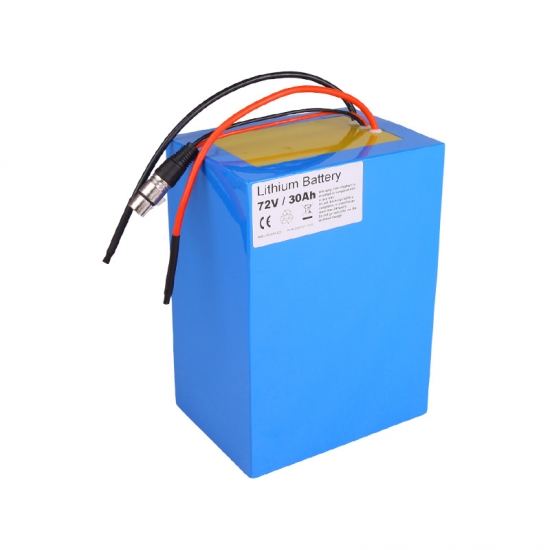

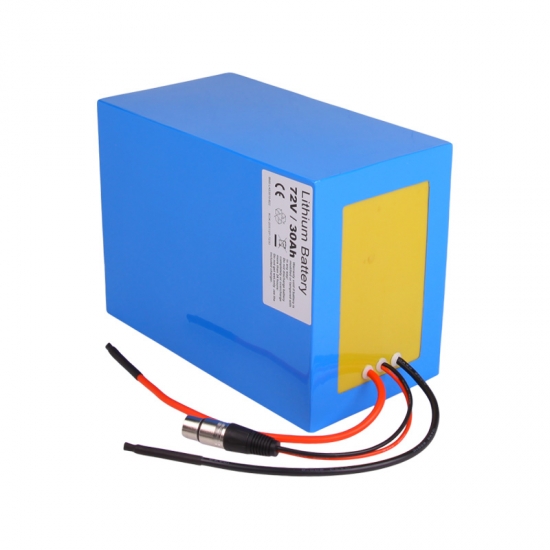

Product Item：18650 Cell 72v 30Ah Lifepo4 Battery Pack for Foldable Mobility Scooter
Product Details
These electric batteries, equippied with LiFePO4 batteries, which are our longest lasting E-scooter Battery, and have a longer lifespan than other types of Lithium batteries. They typically last 2-4 years. They are also our lightest batteries - at half the weight of lead-acid batteries.
Features
Widely used for many famous scotter brands
Prolonged warranty of 18months
Super long cycle life upto 1000 time of 100%DOD
Multifunctional BMS with full protection
Energy denesity per volume are higher : it can reach 227wh/L
Energy denesity per weight :80wh/Kg
Good PCB controlling system can avoid overcharge and overdischarge well
More than 1000times cycle life ,the battery life can reach 4-5years
It can run well in low temperature enviroment condition
No memory .
Detail Pictures
Specification
|
No. |
Items |
Specifications |
|
1 |
Nominal Voltage |
72V |
|
2 |
Nominal Capacity |
30Ah |
|
3 |
Cell inside |
18650 2600mah |
|
4 |
Configuration |
20S12P |
|
5 |
Standard Charge Current |
6A (0.2C) |
|
6 |
Max. Charge Current |
30A (1C) |
|
7 |
Protected Circuit Board(BMS) |
smartbatteryeco.com-Li20S7010-827 or smartbatteryeco.com-Li20S3510-622 |
|
8 |
Continue Discharge Current |
70A |
|
9 |
Peak Discharge Current |
140A |
|
10 |
Full Charged Voltage |
84V(4.2V per cell) |
|
11 |
Charge Cut-off Voltage |
85V (4.25V per cell) |
|
12 |
Discharge Cut-off Voltage |
50V (2.5V per cell) |
|
13 |
Battery Net Weight |
12.74kg |
|
14 |
Battery Dimension |
230*140*250mm (with 20S 70A constant BMS built in) Or 260*188*137mm customized |
|
15 |
Connector |
Input: Carnoon plug 1+3- 30cm wires |
|
Output:Anderson connector 30cm wires |
||
|
16 |
Operating Temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C |
|
17 |
Storage Temperature |
(Recommended to store 20 ± 5°C for long term storage) |
|
18 |
Life Cycle |
>800 times (80% of initial capacity at 0.2C rate, IEC Standard) |

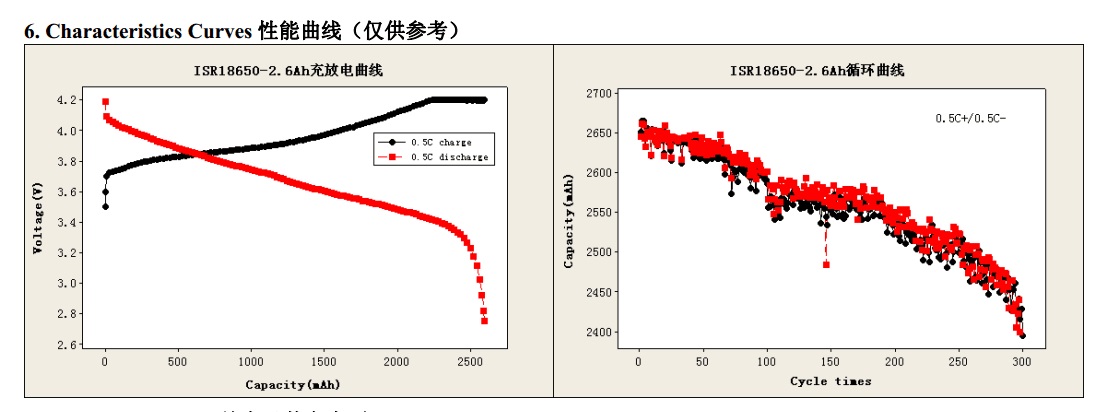

Cells and characteristic curves

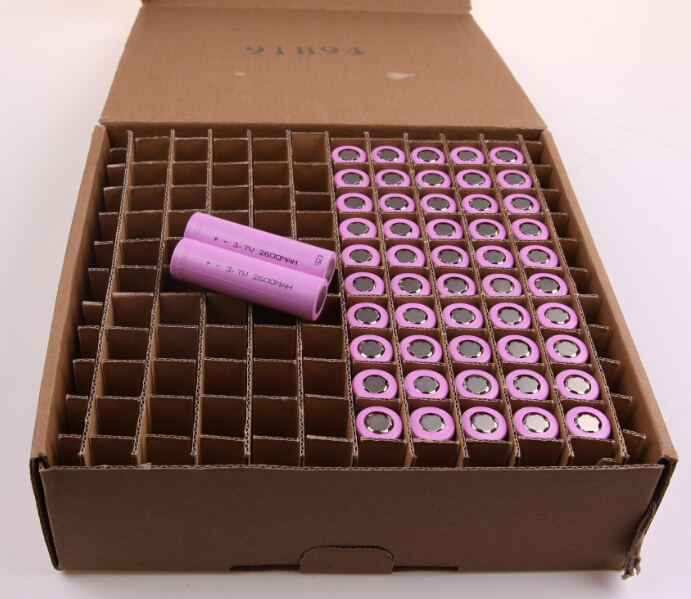

We choose 18650 cells for ebike/ scooter battery pack assembly.
Product Manufacturing
Applications
72v 30Ah Lithium ion Battery Pack made by 18650 Cell are suitable for foldable mobility scooter, electric bike, mini motorcycles
Pakage: OEM gift box. We can baranding OEM design for you
Come and get one for your favorite bikes. Email us at market@smartbatteryeco.com, call us at 0086-755-2937 1122; or you can send us message below, we will reply you in time.
