1. Inbuilt Military Standard BMS: It has a built-in Multi-functional 120A continuous BMS, 360A for 30 sec peak, with high-quality IC and MosFET for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions. 2. Wide Applications: It can be used for solar energy 1
LiFePO4 batteries for solar storage: Cycle stability at high current, Fast charging within 1 hour, Deep discharge protection, overcharge protection, Voltage and temperature monitoring, Single cell monitoring, State of charge determination(SOC and SOH).
Li-ion Marine Batteries 12V 48V 240Ah: Light weight and strong power, sell to France and Russia and gain best praise, customers show it on their website to expand markets.
Recharge efficiency exceeding 98% compared to other carbon based batteries
High stability, high security, green and eco-friendly
Extensive usability: can be used in wind and solar energy storage power, traffic signals, solar hybrid street lighting
Item NO.:
KOK-LTO-66160H-40AHBrand:
KOK POWERShare :

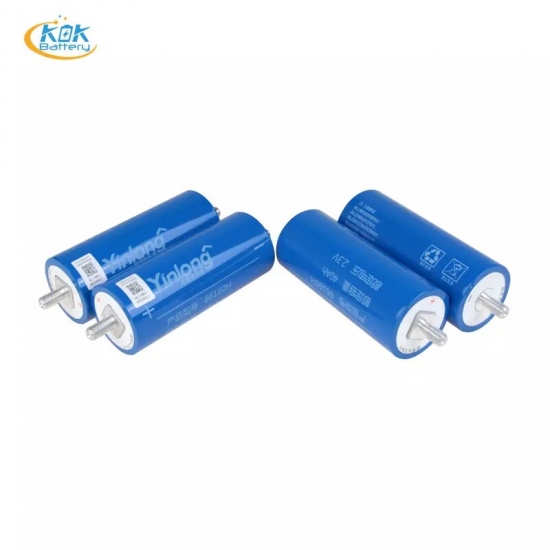

Product Item:Warehouse price smartbatteryeco.com LTO Battery 2.3V 2.4V 40Ah Lithium Titanate Battery For Energy Storage EV RV
Main Feature:our Lithium Titanate Batteries:
With its stable 3D crystal structure, LTO (Lithium Titanate, LiTi5O12 ) chemistry is “zero-strain”, as it hardly forms unstable
SEI film during charging and discharging as opposed to the traditional graphite anode material, therefore,LTO batteries boast 3
extraordinary advantages as below:
1.30-Year Super Long Service Life:The LTO batteries have super long cycle life of 25,000 to 30,000 times, 100% DOD, equivalent to
30 years of service life.
2. Amazing Low/High Temperature Performance at -50℃ ~60℃: The LTO batteries can be charged and discharged from extremely low temperature- 50℃ to ultra-high temperature 60℃, suitable for energy storage in extremely cold/hot countries and areas where other battery chemistry doesn’t work.
3. Fast Charge/Discharge Ability: LTO is the fastest charge/discharge lithium battery at 10C continuously, which can be fully charged/discharged in 6 minutes, to support critical loads such as air condition, water pumps, EV charging, etc. in residential, commercial, industrial ESS applications.
Other Features
Recharge efficiency exceeding 98% compared to other carbon based batteries
High stability, high security, green and eco-friendly
Extensive usability: can be used in wind and solar energy storage power, traffic signals, solar hybrid street lighting
Specifications
LTO 66160A/30Ah |
|
ITEM |
PARAMETERS |
CHEMISTRY |
LITHIUM TITANATE |
DIMENSIONS |
(DIA)66 mm *(H)160 mm |
DISCHARGE RATE |
10C |
NOMINAL CAPACITY |
40Ah |
SAFETY |
HIGH |
NOMINAL VOLTAGE |
2.3V |
IMPEDANCE |
≤1mΩ |
WORKING TEMP. |
-50~60℃ |
HIGH TEMP.PERFORMANCE |
Capacity is higher than 98% of nominal at 55℃,0.5C discharge. |
LOW TEMP.PERFORMANCE |
Capacity is higher than 60% of nominal at -50℃,0.5C discharge, or higher than 80% of nominal at -50℃,0.3C charge. |
Cycle Life |
30000 cycle times of 100%DOD≥80% of nominal capacity |
Benefits
Detail Pictures and intruduction
![]() |
Powerful performance Fast charging ability Flame-retardant and IP 65 water & dust proof housing Maintenance-free if no parasitic drains Nano LiFePO4 battery technology: Green energy, no toxic, and environment friendly |
Advanced nanotechnology consisting of lithium-titanate nanocrystals and their increased surface area are especially designed to enhance the lifetime of these batteries With an over 30 times larger surface area, this technology is able to recharge substantially faster than its more traditional alternative Revolutionary approach to energy storage.
|
![]() |
![]() |
Less electricity and power is needed in order to sustain the battery power for your consideration Advanced modified lithium-ion battery that employ nana-technology in the form of lithium titanate nanocrystals
|
Lithium Titanate batteries allow for a synergy between wind power and battery storage Lithium Titanate batteries are entirely free of carbon, they avoid thermal runaway or overheating |
![]() |

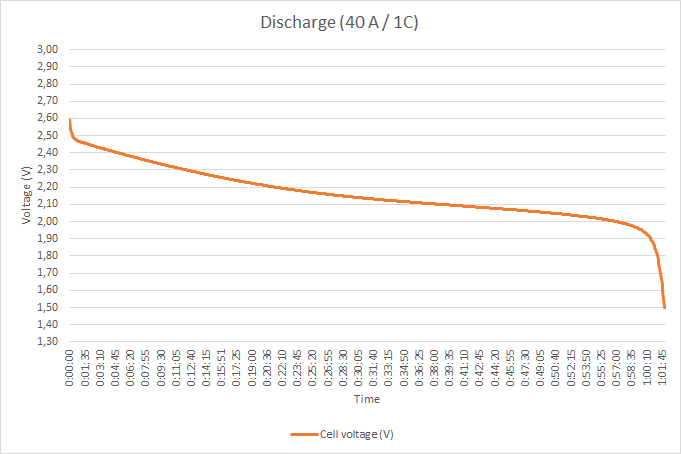

Discharge/Charge Curve

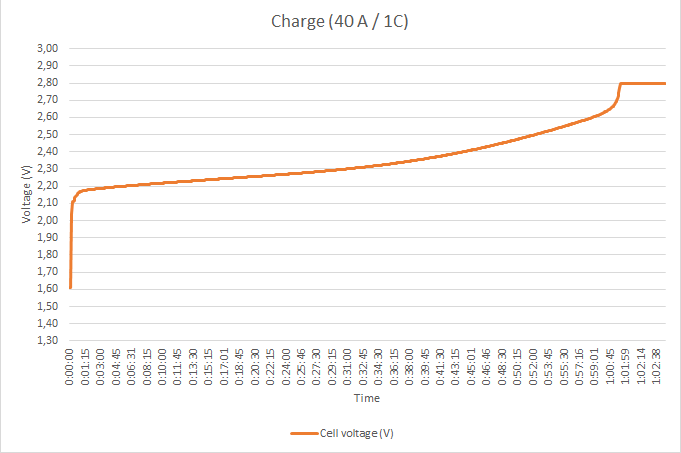

1 LTO 2.4V 40Ah charging curve
Application
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply, home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals, finance, telecommunications , system critical backup power systems
Pakage: OEM gift box. We can baranding OEM design for you
Come and get one. Email us, call us at 0086-755-2937 1122; or you can send us message below, we will reply you in time.
