1. Inbuilt Military Standard BMS: It has a built-in Multi-functional 120A continuous BMS, 360A for 30 sec peak, with high-quality IC and MosFET for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions. 2. Wide Applications: It can be used for solar energy 1
LiFePO4 batteries for solar storage: Cycle stability at high current, Fast charging within 1 hour, Deep discharge protection, overcharge protection, Voltage and temperature monitoring, Single cell monitoring, State of charge determination(SOC and SOH).
Li-ion Marine Batteries 12V 48V 240Ah: Light weight and strong power, sell to France and Russia and gain best praise, customers show it on their website to expand markets.
Item NO.:
KOK-ESS-481000Brand:
KOK POWERShare :
Product Item: smartbatteryeco.com POWER Wholesale Factory lithium ion battery 48V 1000AH for solar battery Energy Storage System
1. Product Description

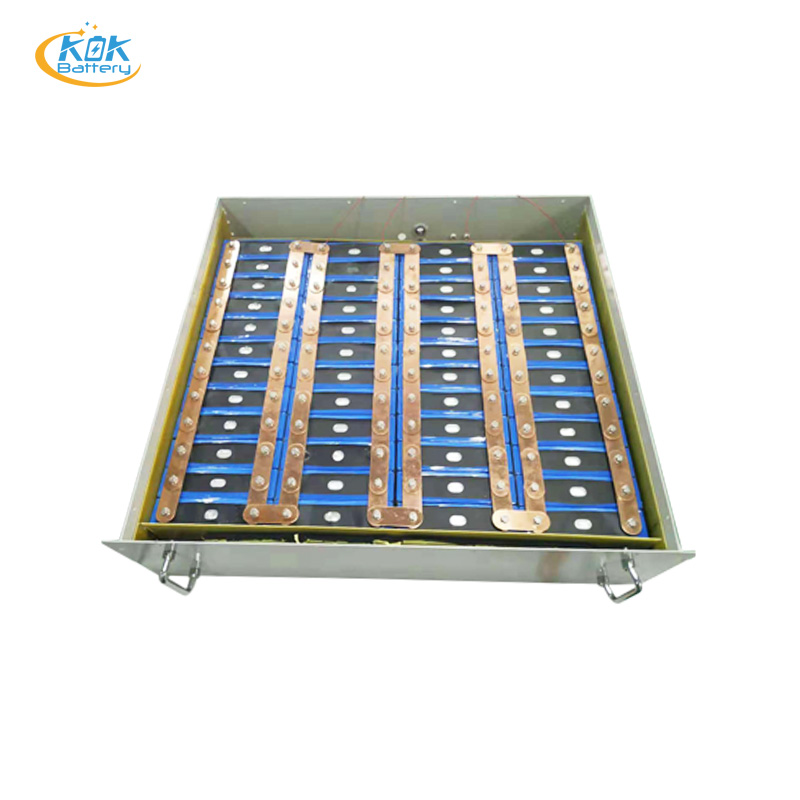

48V 1000Ah ESS battery pack is made up of 3.2V\87AH prismatic Lithium-iron phosphate battery cell, combined with high precision BMS (battery management system), 16S12P assembled. It adopts scientific internal structure design, advanced battery production technology, high specific energy, long life, high safety, wide operating temperature range, etc. It does not contain heavy metals such as lead, cadmium and mercury.
Item |
Specifications |
Remarks |
Nominal voltage (V) |
51.2 |
|
Energy (Wh) |
53452.8 |
|
Nominal capacity (Ah) |
1044 |
Standard charge and discharge |
Charge cut-off voltage (V) |
57.6 |
Adjustable |
Standard charging current (A) |
200 |
Recommended value |
Maximum charging current (A) |
250 |
|
Charge cut-off current (A) |
1 |
Adjustable |
Discharge cutoff voltage (V) |
40 |
Adjustable |
Continuous discharge current (A) |
≤150 |
Recommended value |
Peak discharge current (A) |
200 |
|
Internal resistance (mΩ) |
≤20 |
Between the positive and negative ends of the discharge port |
Size (mm) |
855*855*1320 |
|
Weight(kg) |
About 450kg |
|
Operating Temperature (℃) |
-20~55 |
|
Storage Temperature (℃) |
-40~55 |
|
Storage humidity(RH) |
5%~95% |
|
Working humidity(RH) |
≤85% |
|
Communication Interface |
It has RS485\CAN communication interface and provides corresponding communication protocol, which can upload lithium battery real-time working condition monitoring platform. |
|
Case material |
Cold rolled steel lacquered case package |

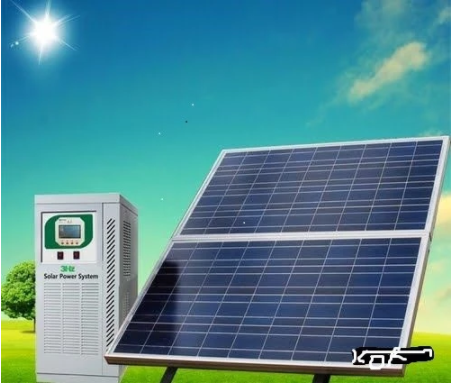

3.Application
www.smartbatteryeco.com, founded in 2011, is pioneer of smart lithium-ion battery systems in China. Our smart batteries can display & monitor the batteries status and thus enable the devices to conserve and use power intelligently with a patented built-in battery management system (BMS) via blue-tooth or other communications through APP or on screen.
smartbatteryeco.com is strong in R&D and manufacturing of smart battery systems, widely used in fields such as E-mobility (e-bike, e-scooter, e-skateboard, e-motorcycle, e-tricycle/rickshaw, e-wheelchair, e-golf cart, e-forklift, e-tourist vehicle, RV/caravan,marine,etc.), Energy Storage Systems (solar/wind system, telecom/base station, uninterruptible power supply/UPS/backup system) and engine starter batteries. smartbatteryeco.com batteries can readily replace the outdated, bulky and pollutant Lead-Acid / AGM/ GEL/SLA batteries with the latest smart lithium battery technology.
Following are our company production manufacturing
smartbatteryeco.com staff, from senior management to direct operators, have over 8 years’ experience of building batteries for many applications.All assembling operators are trained to high standards;and our sales team are good communicators. We will work with you to find a custom power solution for your applications and will provide you with complete design, build and test solutions tailored to your specific needs.
smartbatteryeco.com has been awarded as Hi-Tech Company of Guangdong Province, and products are designed to be safe, reliable and competitively priced. All our products are designed and manufactured to the highest standards and meet or exceed industry safety and environmental standards including: ISO9001, IEC62133, UL1642 / UL2054,CE,RoHS.
Our Vision:
Providing battery solutions to improve the global environment
Our Core Value:
Developing cutting-edge battery technologies and providing all-round customer support
Our Mission:
Transcending customers’ expectations, and boosting customers’ growth
