1. Inbuilt Military Standard BMS: It has a built-in Multi-functional 120A continuous BMS, 360A for 30 sec peak, with high-quality IC and MosFET for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions. 2. Wide Applications: It can be used for solar energy 1
LiFePO4 batteries for solar storage: Cycle stability at high current, Fast charging within 1 hour, Deep discharge protection, overcharge protection, Voltage and temperature monitoring, Single cell monitoring, State of charge determination(SOC and SOH).
Li-ion Marine Batteries 12V 48V 240Ah: Light weight and strong power, sell to France and Russia and gain best praise, customers show it on their website to expand markets.
1. FASTER CHARGING: fully charged in 10 minutes
2. HIGH DISCHARGE RATE: up to 10C
3. WIDE WORKING TEMPERATURE RANGE: -50°C ~ 65°C
4. VERY LONG LIFETIME: over 25,000 cycles
Item NO.:
KOK-LTO-30Brand:
KOK POWERShare :
Product Item: smartbatteryeco.com POWER Prismatic Lithium Titanate battery Yinlong LTO 2.3V 30Ah for EV ESS
1. FASTER CHARGING: fully charged in 10 minutes
2. HIGH DISCHARGE RATE: up to 10C
3. WIDE WORKING TEMPERATURE RANGE: -50°C ~ 65°C
4. VERY LONG LIFETIME: over 25,000 cycles
Technical specification
|
LTO P30 2.3V30AH PRISMATIC |
Specifications |
|
Battery type |
Lithium Titanate Battery (LTO) |
|
Electrical data |
|
|
Nominal capacity |
30/31.5 Ah |
|
Nominal Voltage |
2.3 V |
|
Internal resistance |
≤ 0.8mΩ |
|
Max. charging current |
10 C (300 A) |
|
Charging upper limit voltage |
2.9V |
|
Max. discharge current |
10 C (300 A) |
|
Discharge cut-off voltage |
1.5 V |
|
Cycle lifetime |
25,000 |
|
Operational requirements |
|
|
Operating ambient temperature |
-50°C ~ 65°C (Charging) -50°C ~ 65°C (Discharging) |
|
Storage ambient temperature |
-20°C ~ 45°C Short-term (within 1 month) -20°C ~ 20°C Long-term (within 1 year) |
|
Storage humidity |
<70% |
|
Mechanical data |
|
|
Weight |
1.01kg |
|
Cell construction type |
Prismatic |
|
Cell Length |
173 mm |
|
Cell height (excluding terminals) |
97 mm |
|
Cell Thickness |
27.8 mm |
|
Energy Density |
140Wh/L |

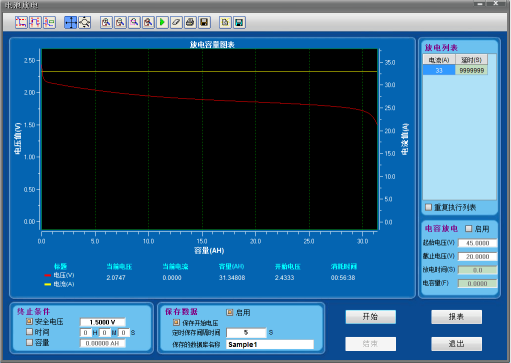

1C discharge curve
3C discharge curve
Benefits
Application
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply, home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals, finance, telecommunications , system critical backup power systems
Pakage: OEM gift box. We can baranding OEM design for you
Come and get one. Email us, call us at 0086-755-2937 1122; or you can send us message below, we will reply you in time.
www.smartbatteryeco.com, founded in 2011, is pioneer of smart lithium-ion battery systems in China. Our smart batteries can display & monitor the batteries status and thus enable the devices to conserve and use power intelligently with a patented built-in battery management system (BMS) via blue-tooth or other communications through APP or on screen.
smartbatteryeco.com is strong in R&D and manufacturing of smart battery systems, widely used in fields such as E-mobility (e-bike, e-scooter, e-skateboard, e-motorcycle, e-tricycle/rickshaw, e-wheelchair, e-golf cart, e-forklift, e-tourist vehicle, RV/caravan,marine,etc.), Energy Storage Systems (solar/wind system, telecom/base station, uninterruptible power supply/UPS/backup system) and engine starter batteries. smartbatteryeco.com batteries can readily replace the outdated, bulky and pollutant Lead-Acid / AGM/ GEL/SLA batteries with the latest smart lithium battery technology.
Following are our company production manufacturing
smartbatteryeco.com staff, from senior management to direct operators, have over 8 years’ experience of building batteries for many applications.All assembling operators are trained to high standards;and our sales team are good communicators. We will work with you to find a custom power solution for your applications and will provide you with complete design, build and test solutions tailored to your specific needs.
smartbatteryeco.com has been awarded as Hi-Tech Company of Guangdong Province, and products are designed to be safe, reliable and competitively priced. All our products are designed and manufactured to the highest standards and meet or exceed industry safety and environmental standards including: ISO9001, IEC62133, UL1642 / UL2054,CE,RoHS.
Our Vision:
Providing battery solutions to improve the global environment
Our Core Value:
Developing cutting-edge battery technologies and providing all-round customer support
Our Mission:
Transcending customers’ expectations, and boosting customers’ growth
