1. Inbuilt Military Standard BMS: It has a built-in Multi-functional 120A continuous BMS, 360A for 30 sec peak, with high-quality IC and MosFET for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions. 2. Wide Applications: It can be used for solar energy 1
LiFePO4 batteries for solar storage: Cycle stability at high current, Fast charging within 1 hour, Deep discharge protection, overcharge protection, Voltage and temperature monitoring, Single cell monitoring, State of charge determination(SOC and SOH).
Li-ion Marine Batteries 12V 48V 240Ah: Light weight and strong power, sell to France and Russia and gain best praise, customers show it on their website to expand markets.
Item NO.:
KOK-21700Brand:
KOK POWERShare :

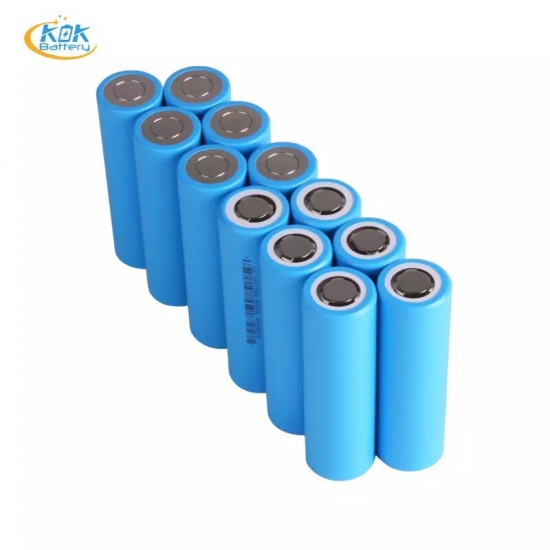

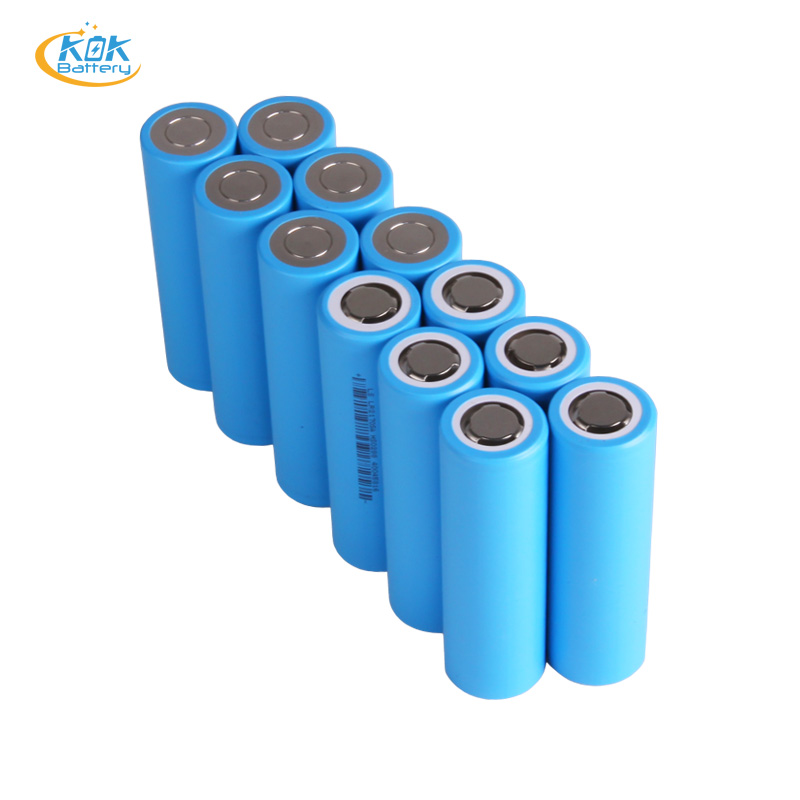

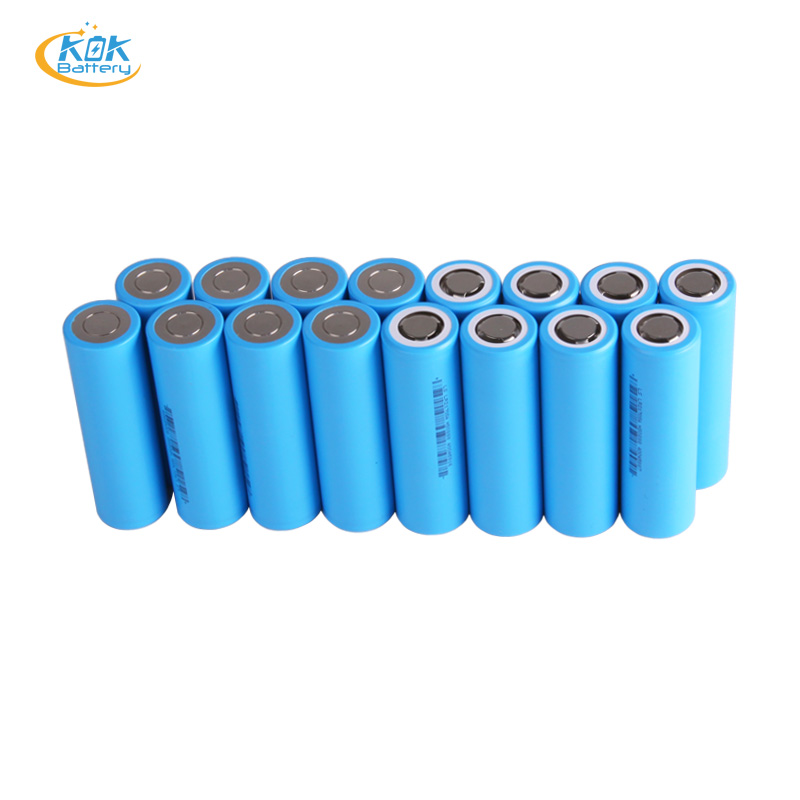

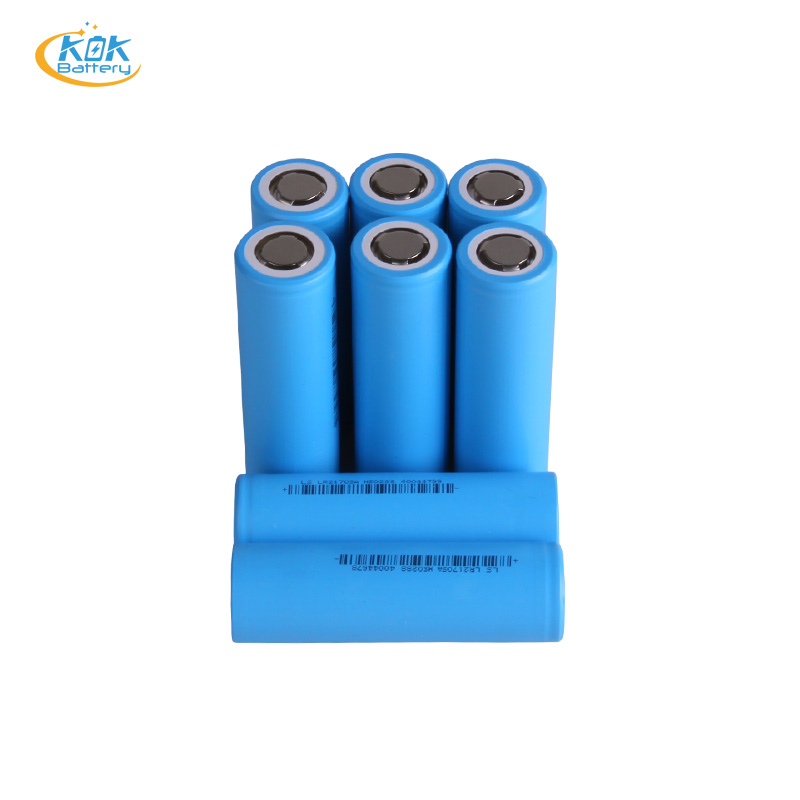

Product Item: smartbatteryeco.com POWER High Quality 21700 Li-ion 3.7V 4000mAh Cyclindrical Rechargeable LiShen Battery Cell
Main Feature: 21700 cylindrical cell, with greater power and energy density and lower impedance. This versatile lithium ion cell is suitable for a wide variety of applications and system designs. Proven performance in the toughest conditions, combining durability, reliability, and safety, the 2600mAh cell offers an excellent combination of price-performance.
Other Features
Specifications
|
No. |
Items |
Specifications |
|
1 |
Nominal Voltage |
3.7V |
|
2 |
Nominal Capacity |
4000mAh |
|
3 |
Standard Charge Current |
0.2C-0.5C |
|
4 |
Max. Charge Current |
1C (4A) |
|
5 |
Continuous Discharge Current |
3C (12A) |
|
6 |
Peak Discharge Current |
5C (20A) |
|
7 |
Charge Cut-off Voltage |
4.2V |
|
8 |
Discharge Cut-off Voltage |
2.75V |
|
9 |
Inner Resistance |
≤12.5 mΩ |
|
10 |
Weight |
69±2g |
|
11 |

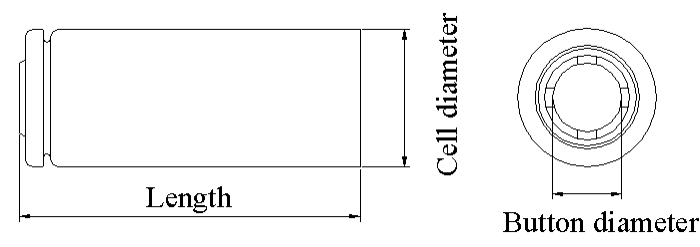

Dimension |
Length: 70mm Diameter: 21mm |
|
12 |
Operating Temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 60°C |
|
13 |
Storage Temperature |
optimal store temperature of -20- 20°C for long term storage |
|
14 |
Life Cycle |
³800 times(100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |
Benefits
|
No. |
Items |
Test Method and Condition |
Criteria |
|
1 |
Vibration Test |
After standard charging the cell, vibrate it at a vibration table with frequency of 1Hz per minute between 10Hz and 55Hz, the excursion of the vibration is 1.52mm. The cell shall be vibrated for 90 minutes per axis of x, y axes. |
No leakage No fire No explosion |
|
2 |
Mechanical Shock Test |
In directions of X, Y, and Z, apply impacts of a minimum mean acceleration of 75G in the first 3mSec and a peak acceleration that falls between 125G and 175G. |
No leakage No fire No explosion |
|
3 |
Temperature Cycling Test |
The fully charged batteries are to be placed in a test chamber and subjected to the following cycles: a) Raise the temperature to 75°C ±2°C within 30 minutes and maintain this temperature for 4 hours. b) Reduce the temperature to 20°C ±2°C within 30 minutes and maintain this temperature for 2 hours. c) Reduce the temperature to minus 20°C ±2°C (minus 40 ±5°F) within 30 minutes and maintain this temperature for 4 hours. d) Raise the temperature to 20°C±2°C and maintain this temperature for 30 minutes. e) Repeat the above procedure for a further 4cycles. f) After the total 5 cycles, store the cell for 7 days prior to further examination. |
No explosion No fire |
Lithium Battery Packs made by 3.7v 21700 cells are applicable for the following transportations;
Application
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply, home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals, finance, telecommunications , system critical backup power systems

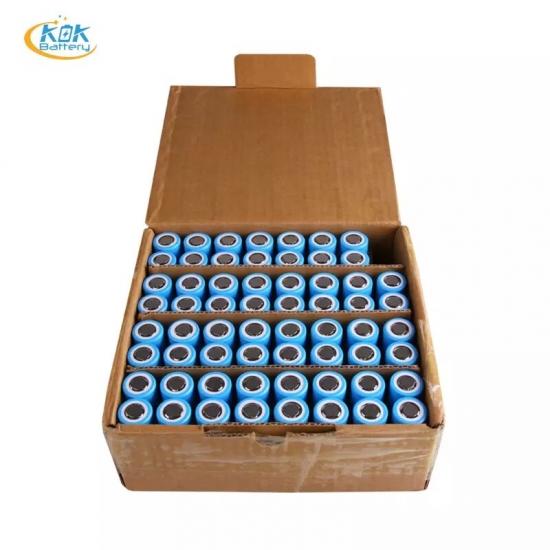

Pakage: OEM gift box. We can baranding OEM design for you
Come and get one. Email us, call us at 0086-755-2937 1122; or you can send us message below, we will reply you in time.
www.smartbatteryeco.com, founded in 2011, is pioneer of smart lithium-ion battery systems in China. Our smart batteries can display & monitor the batteries status and thus enable the devices to conserve and use power intelligently with a patented built-in battery management system (BMS) via blue-tooth or other communications through APP or on screen.
smartbatteryeco.com is strong in R&D and manufacturing of smart battery systems, widely used in fields such as E-mobility (e-bike, e-scooter, e-skateboard, e-motorcycle, e-tricycle/rickshaw, e-wheelchair, e-golf cart, e-forklift, e-tourist vehicle, RV/caravan,marine,etc.), Energy Storage Systems (solar/wind system, telecom/base station, uninterruptible power supply/UPS/backup system) and engine starter batteries. smartbatteryeco.com batteries can readily replace the outdated, bulky and pollutant Lead-Acid / AGM/ GEL/SLA batteries with the latest smart lithium battery technology.
Following are our company production manufacturing
smartbatteryeco.com staff, from senior management to direct operators, have over 8 years’ experience of building batteries for many applications.All assembling operators are trained to high standards;and our sales team are good communicators. We will work with you to find a custom power solution for your applications and will provide you with complete design, build and test solutions tailored to your specific needs.
smartbatteryeco.com has been awarded as Hi-Tech Company of Guangdong Province, and products are designed to be safe, reliable and competitively priced. All our products are designed and manufactured to the highest standards and meet or exceed industry safety and environmental standards including: ISO9001, IEC62133, UL1642 / UL2054,CE,RoHS.
Our Vision:
Providing battery solutions to improve the global environment
Our Core Value:
Developing cutting-edge battery technologies and providing all-round customer support
Our Mission:
Transcending customers’ expectations, and boosting customers’ growth
