1. Inbuilt Military Standard BMS: It has a built-in Multi-functional 120A continuous BMS, 360A for 30 sec peak, with high-quality IC and MosFET for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions. 2. Wide Applications: It can be used for solar energy 1
LiFePO4 batteries for solar storage: Cycle stability at high current, Fast charging within 1 hour, Deep discharge protection, overcharge protection, Voltage and temperature monitoring, Single cell monitoring, State of charge determination(SOC and SOH).
Li-ion Marine Batteries 12V 48V 240Ah: Light weight and strong power, sell to France and Russia and gain best praise, customers show it on their website to expand markets.
Item NO.:
XC18-716-6018Brand:
KOK POWERShare :
Product Item: smartbatteryeco.com POWER Electric Bike Battery 60V 10ah 12Ah 15Ah 18.2Ah 20Ah Lthium ion Battery
Product Details

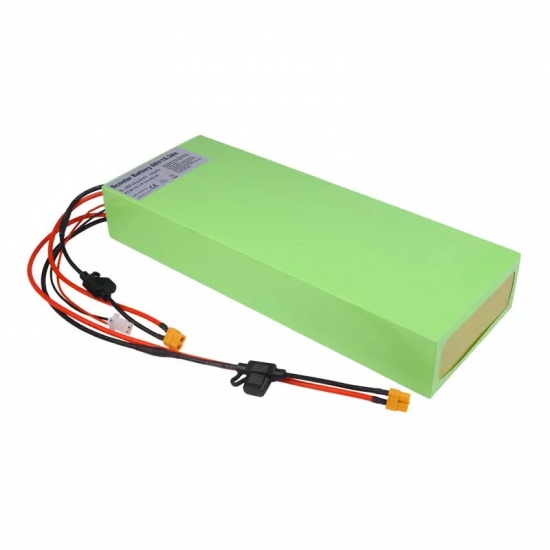

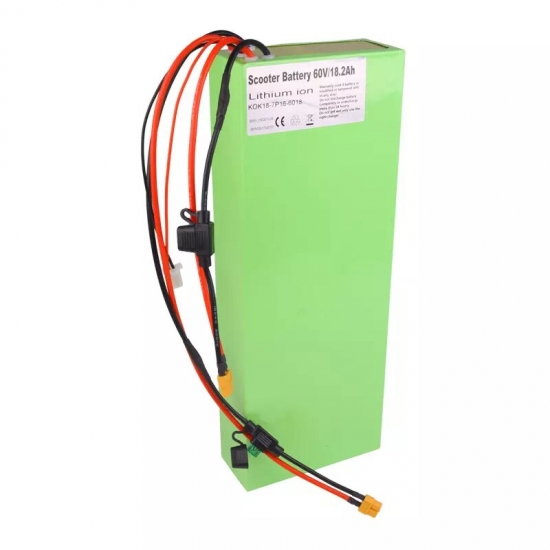

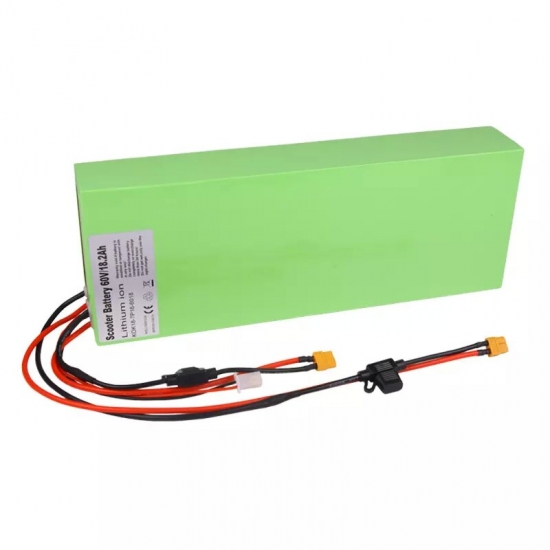

60V 18.2Ah lithium ion battery for ebike, electric scooters made of
top quality Chinese cells and the best ingredients .
We use state of the art BMS with temp control to keep your battery as safe as possible.
Features
Detail Pictures
Specification
|
No. |
Items |
Specifications |
|
1 |
Nominal Voltage |
59.2V |
|
2 |
Nominal Capacity |
15Ah |
|
3 |
Cell inside |
18650 3.7V 2600mAh |
|
4 |
Configuration |
16S6P |
|
5 |
Standard Charge Current |
3A (0.2C) |
|
6 |
Max. Charge Current |
15A (1C) |
|
7 |
Protected Circuit Board(BMS) |
BMS-Li16S3010-591 |
|
8 |
Continue Discharge Current |
30A |
|
9 |
Peak Discharge Current |
60A |
|
10 |
Full Charged Voltage |
67.2V(4.2V per cell) |
|
11 |
Charge Cut-off Voltage |
68V (4.25V per cell) |
|
12 |
Discharge Cut-off Voltage |
40V (2.5V per cell) |
|
13 |
Battery Net Weight |
5.22kg |
|
14 |
Battery Dimension |
375*150*60mm |
|
15 |
Connector |
Input: a pair of 12AWG wires(20cm) with 30A fuse, XT60 connector a pair of 12AWG wires(50cm) with 30A fuse, XT60 connector |
|
Output: a pair of 18AWG wires(20cm) with 2P 2.8mm connector |
||
|
16 |
Operating Temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C |
|
17 |
Storage Temperature |
(Recommended to store 20 ± 5°C for long term storage) |
|
18 |
Life Cycle |
>800 times (80% of initial capacity at 0.2C rate, IEC Standard) |
Related Products
Why choose us?
Quality control through all production process:
1. Brand New A grade Cells:
High performance cells putting out high amps and at still a 18.2Ah capacity.
2. Advanced PCM:
PCM or PCB ( protection circuit module or board ) is the "heart" of Lithium battery pack. It will protect Lithium battery pack from overcharging, over-discharging and over-drain, over-temperature therefore it is the must to have to avoid Lithium battery pack from explosion, fire and damage.
Built-in 30amp continuous 60amp burst BMS supporting 1800Watt to 3600Watt
3. TECHNIQUES:
Automatic spot-welding techniques; Exquisite workmanship
4. Case:
Epoxy plate with shrink wrapped for extra padding.
5. Warranty :
18 months warranty and provide extended warranty service
6. Short delivery time:
Standard battery : 3-7 working days
Customized battery: depends on order quantity.
7. MOQ: NO MOQ
Pakage: OEM gift box. We can baranding OEM design for you
Come and get one for your favorite bikes. Email us, call us at 0086-755-2937 1122; or you can send us message below, we will reply you in time.
www.smartbatteryeco.com, founded in 2011, is pioneer of smart lithium-ion battery systems in China. Our smart batteries can display & monitor the batteries status and thus enable the devices to conserve and use power intelligently with a patented built-in battery management system (BMS) via blue-tooth or other communications through APP or on screen.
smartbatteryeco.com is strong in R&D and manufacturing of smart battery systems, widely used in fields such as E-mobility (e-bike, e-scooter, e-skateboard, e-motorcycle, e-tricycle/rickshaw, e-wheelchair, e-golf cart, e-forklift, e-tourist vehicle, RV/caravan,marine,etc.), Energy Storage Systems (solar/wind system, telecom/base station, uninterruptible power supply/UPS/backup system) and engine starter batteries. smartbatteryeco.com batteries can readily replace the outdated, bulky and pollutant Lead-Acid / AGM/ GEL/SLA batteries with the latest smart lithium battery technology.
Following are our company production manufacturing
smartbatteryeco.com staff, from senior management to direct operators, have over 8 years’ experience of building batteries for many applications.All assembling operators are trained to high standards;and our sales team are good communicators. We will work with you to find a custom power solution for your applications and will provide you with complete design, build and test solutions tailored to your specific needs.
smartbatteryeco.com has been awarded as Hi-Tech Company of Guangdong Province, and products are designed to be safe, reliable and competitively priced. All our products are designed and manufactured to the highest standards and meet or exceed industry safety and environmental standards including: ISO9001, IEC62133, UL1642 / UL2054,CE,RoHS.
Our Vision:
Providing battery solutions to improve the global environment
Our Core Value:
Developing cutting-edge battery technologies and providing all-round customer support
Our Mission:
Transcending customers’ expectations, and boosting customers’ growth
