1. Inbuilt Military Standard BMS: It has a built-in Multi-functional 120A continuous BMS, 360A for 30 sec peak, with high-quality IC and MosFET for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions. 2. Wide Applications: It can be used for solar energy 1
LiFePO4 batteries for solar storage: Cycle stability at high current, Fast charging within 1 hour, Deep discharge protection, overcharge protection, Voltage and temperature monitoring, Single cell monitoring, State of charge determination(SOC and SOH).
Li-ion Marine Batteries 12V 48V 240Ah: Light weight and strong power, sell to France and Russia and gain best praise, customers show it on their website to expand markets.
3.2v 90Ah LiFePO4 Prismatic Battery Cells, with greater power and energy density and lower impedance. This versatile lithium ion cell is suitable for a wide variety of applications and system designs.
Item NO.:
KOK-L36130200-90AhBrand:
KOK POWERShare :
Product Item：smartbatteryeco.com Lifepo4 15Ah 20Ah Rechargeable Battery Cell 3.2v lifepo4 battery 90ah
Proven performance in the toughest conditions, combining durability, reliability, and safety, the ANR26650 cell offers an excellent combination of price-performance.
Other Features
LFP Prismatic Cell in smartbatteryeco.com POWER are suitable for advanced lithium iron phosphate batteries and energy storage systems that deliver high power, maximize usable energy, and provide long life, all with excellent safety performance.
3.2V 90Ah LiFePO4 cells designed to help customers quickly and cost-effectively take engineering breakthroughs from conception to commercialization.

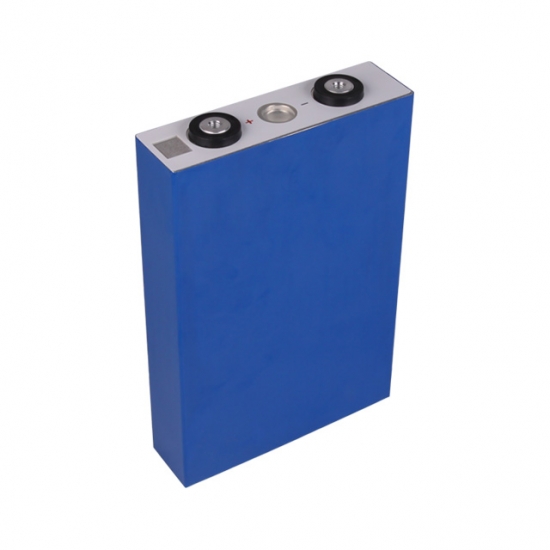

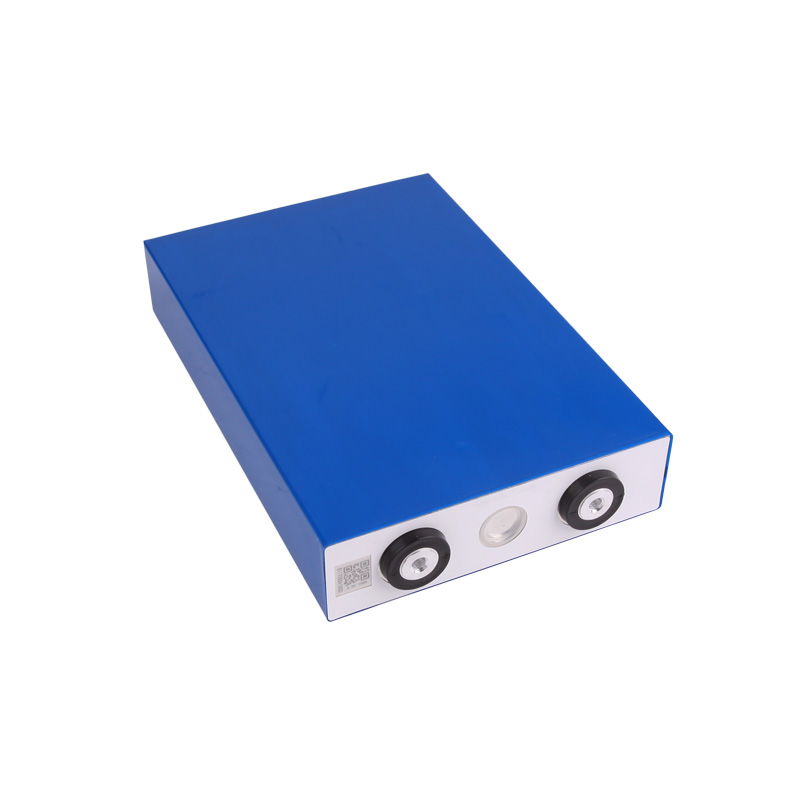

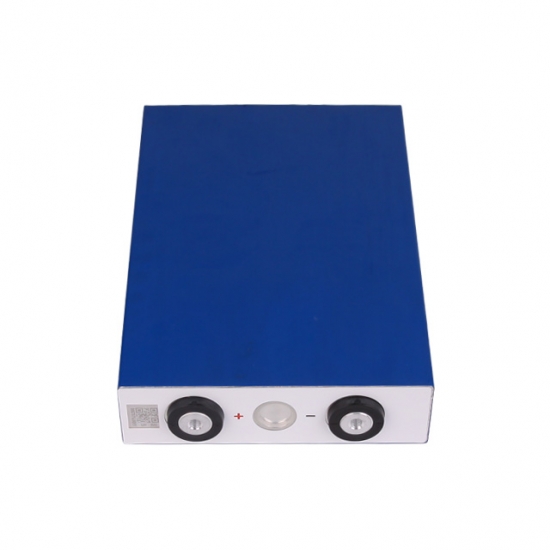

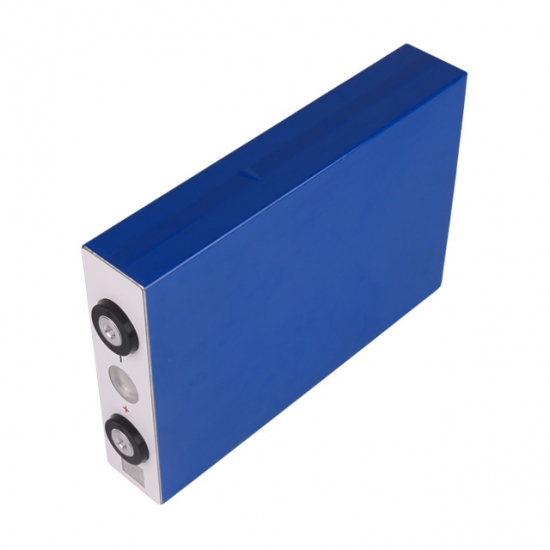

Detail Pictures
Specification
No.
Items
Specifications
1
Nominal Voltage
3.2V
2
Nominal Capacity
90Ah
3
Standard Charge Current
18A (0.2C rate)
4
Max. Charge Current
90A (1C rate)
5
Continuous Discharge current
2C (180A)
6
Peak Discharge Current
3C(270A)
7
Charge Cut-off Voltage
3.9V
8
Discharge Cut-off Voltage
2.0V
9
Inner Resistance
(Impedance)
≤ 0.6mΩ (At 0.2C rate, 2.0V cut-off)
10
Weight
1.98Kg
11
Dimensions
Length: 200mm
Width: 130mm
Thickness: 36mm
12
Operating Temperature
Charging: 0°C ~ 55°C
Discharging: -20°C ~ 45°C
(The cell surface temperature cannot exceed 70°C)
13
Storage Temperature/Humidity
Temperature: -10°C ~ +35°C
Humidity:65%±20%RH
(optimal store temperature of 23 ± 5°C for long term storage)
14
Cycle Life
≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
What can LiFePO4 Battery 3.2v 90ah battery cell made?
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply, home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals, finance, telecommunications , system critical backup power systems
Benefits
2 years’warranty and maintenance-free if no parasitic drains
Built-in balanced charging system to ensure long-term consistency of the cell
Safest perfomence:LiFePO4 battery made(Green energy, no toxic, and environment friendly)
Product Manufacturing
Applications
Lithium Battery Pack made by 3.2v 90Ah Cell are suitable for mobility scooter, electric bike, electric motorcycles.
Come and get one for your favorite bikes. call us at 0086-755-2937 1122; or you can send us message below, we will reply you in time.
