Item NO.:
KOK-LiPO4S1P-12100Brand:
KOK POWERShare :
KEY FEATURES AND BENEFITS
+ Made of High quality Li-ion cell;
+ High current charger optional;
+ With advanced BMS (Battery Management System)
BMS (Battery Management System):
With built-in IC compatible with military standards for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions
TECHNIQUES:
Automatic spot-welding techniques;
Exquisite workmanship
|
No.
|
Items
|
Specifications
|
|
1
|
Nominal Voltage
|
12.8V
|
|
2
|
Nominal Capacity
|
100Ah
|
|
3
|
Cell Inside
|
LiFePO4 3.2V 100Ah cell
|
|
4
|
Configuration
|
4S1P
|
|
5
|
Standard Charge Current
|
0.2C-0.5C
|
|
6
|
Max. Charge Current
|
1C
|
|
7
|
Battery management System (BMS)
|
Smart BMS with Bluetooth 4.0 (Read Voltage, Current, Temperature, cycles)
|
|
8
|
Continuous Discharge Current
|
150A
|
|
9
|
Peak Discharge Current
|
600A
|
|
10
|
Full Charged Voltage
|
14.6V(3.65V per cell)
|
|
11
|
Charge Cut-off Voltage
|
15.6V (3.9V per cell)
|
|
12
|
Discharge Cut-off Voltage
|
10V (2.5V per cell)
|
|
13
|
Net Weight
|
11.19kg
|
|
14
|
Dimensions
|
L307*W168*H210mm
|
|
15
|
Connector
|
threaded terminals
|
|
threaded terminals |
||
|
16
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C |
|
17
|
Storage Temperature
|
(Recommended to store 20 ± 5°C for long term storage)
|
|
18
|
Cycle Life
|
3500 times (80% of initial capacity at 0.2C rate, IEC Standard)
|

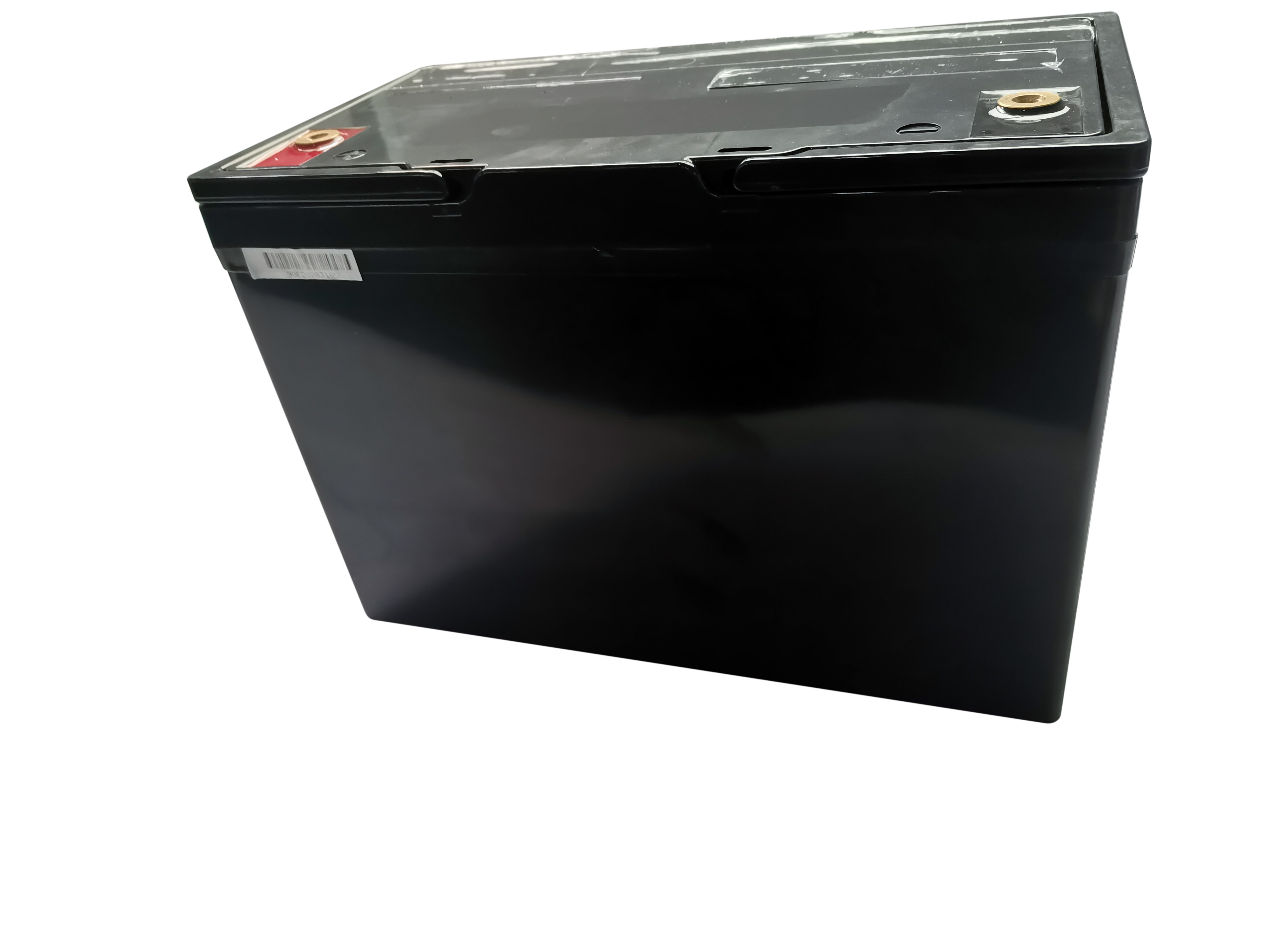

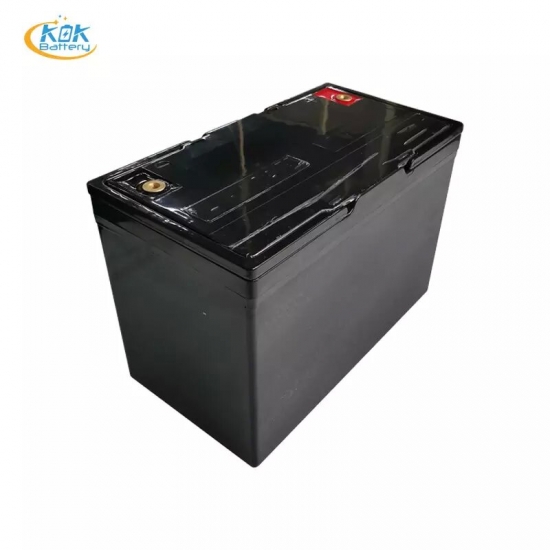

12V100Ah Lithium ion battery for Electric Motorcycle 1200W
(The battery pack is specifically designed for Electric Motorcycle ,with suitable size and charger)
Customized battery pack available;
Warmly and timely communication;
1 year warranty and good aftersales;
Fast delivery
