1. Inbuilt Military Standard BMS: It has a built-in Multi-functional 120A continuous BMS, 360A for 30 sec peak, with high-quality IC and MosFET for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions. 2. Wide Applications: It can be used for solar energy 1
LiFePO4 batteries for solar storage: Cycle stability at high current, Fast charging within 1 hour, Deep discharge protection, overcharge protection, Voltage and temperature monitoring, Single cell monitoring, State of charge determination(SOC and SOH).
Li-ion Marine Batteries 12V 48V 240Ah: Light weight and strong power, sell to France and Russia and gain best praise, customers show it on their website to expand markets.
Lithium Auto batteries are mainly for any application which using a Lead Acid, Gel or AGM Battery. Inside are put an integrated BMS, designed to handle superior abuse tolerance.
Item NO.:
KOK-CSB-20Brand:
KOK POWERShare :

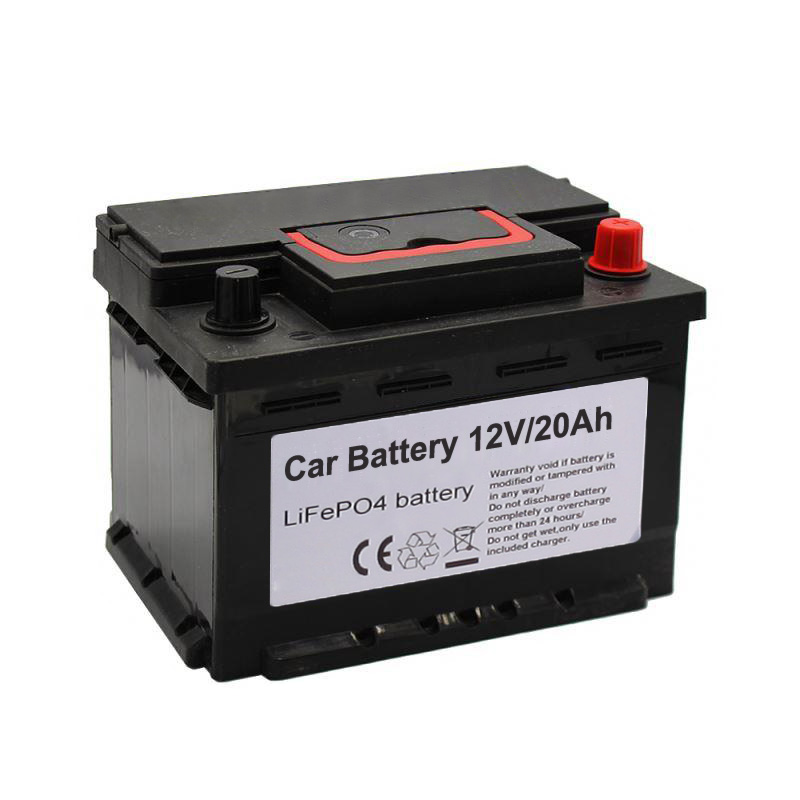

Product Item:High C-rate Car Automotive Battery 12V 20Ah Lithium Batteries
Main Features:Smart LiFePO4 Motorcycle battery packs show our bespoke casing and BPS(Battery Protection System) further increase safety and durability.
Specifications
No.
Items
Specifications
1
Nominal Voltage
12.8V
2
Nominal Capacity
20Ah
3
Cell Inside
High Powerful Lifepo4 cell 3.2v20Ah
4
Configuration
4S1P
5
Standard Charge Current
0.2C
6
Max. Charge Current
1C
7
Battery management System (BMS)
BMS-L4S100-280
8
Continuous Discharge Current
100A
9
600A
10
Pulse discharge current
800A
11
Full Charged Voltage
14.6V(3.65V per cell)
12
Charge Cut-off Voltage
15.6V (3.9V per cell)
13
Discharge Cut-off Voltage
8V (2.0V per cell)
14
Net Weight
3.5kg
14
Dimensions
260*175*201mm(w/o terminals); 260*175*221mm(w/terminals）
15
Operating Temperature
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C
16
Storage Temperature
(Recommended to store 20 ± 5°C for long term storage)
17
Cycle Life
2000 times (80% of initial capacity at 0.2C rate, IEC Standard)
CCA
Other Features
Compared with the lead-acid batteries,the LiFePO4 car start batteries are:
Smaller: 1/2 of the size
Lighter: 1/3 of the weight
Safer: Can be installed in any direction without leakage
Longer Life: 7-10 times longer
Compared with other lithium car batteries, our lithium starting engine batteries are:
High cranking Amps up to 130A
Superior Safety, abuse tolerance
Extended battery life of 2000 100% deep cycle
Low Self-discharge
Patented braided copper strings to support high power
Strong cell holders to protect each cell from vibration and overheating
Patented design of hexagonal cap for screws drive
Gold-plating copper terminals to ensure the best conductivity
No wiring structure
Built-in self-balance chip
Benefits
2 years’warranty and maintenance-free if no parasitic drains
Built-in balanced charging system to ensure long-term consistency of the cells
Safest perfomence :LiFePO4 battery made(Green energy, no toxic, and environment friendly)
Application
12V 20Ah :recommended for passenger vehicle up to 3.0L; replacement of up to 12V 60 Ah lead-acid battery
Recommended for
1) Track/Race bikes up to 1200cc or more
2) Competition Supermotos and Dirtbikes
3) Competition ATVs
Package: OEM gift box. We can branding OEM design for you
