1. Inbuilt Military Standard BMS: It has a built-in Multi-functional 120A continuous BMS, 360A for 30 sec peak, with high-quality IC and MosFET for over-current, over-discharge, over-charge, short-circuit, adverse-polarity connection, balancing functions. 2. Wide Applications: It can be used for solar energy 1
LiFePO4 batteries for solar storage: Cycle stability at high current, Fast charging within 1 hour, Deep discharge protection, overcharge protection, Voltage and temperature monitoring, Single cell monitoring, State of charge determination(SOC and SOH).
Li-ion Marine Batteries 12V 48V 240Ah: Light weight and strong power, sell to France and Russia and gain best praise, customers show it on their website to expand markets.
LiFePO4 Electric Battery:This product specification has been prepared to specify the rechargeable Lithium iron phosphate battery to be supplied to the customer by smartbatteryeco.com, super long life up to 6000 times, zero maintainance.
Item NO.:
KOK-LSV-1220ABrand:
KOK POWERShare :
Product Item:Golf Caddy LiFePO4 12V Battery Pack 16Ah 20Ah 22Ah Rechargeable Battery 4S6P 3.2v Cells 250W
Main Features: LiFePO4 battery packs : durable. Long-life lithium-ion battery 40Ah, ultra safe
Other Features:
·Lower weight (up to 60% lighter)
·Cycles:> 6000 (50% DOD), up to 10 times higher
·Ultra safe
·Superior performance
·Non- pollutant
Specifications
No.
Items
Specifications
1
Nominal Voltage
12.8V
2
Nominal Capacity
20Ah
3
Cell Inside
HT 26650 3.2V3300mAh
4
Configuration
4S6P
5
Standard Charge Current
4A (0.2C)
6
Max. Charge Current
20A (1c)
7
Battery management System (BMS)
BMS-L4S2020-326
8
Continuous Discharge Current
20A
9
Peak Discharge Current
40A
10
Full Charged Voltage
14.6V(3.65V per cell)
11
Charge Cut-off Voltage
15.6V (3.9V per cell)
12
Discharge Cut-off Voltage
8V (2.0V per cell)
13
Net Weight
2.58kg
14
Dimensions
180*168*77mm
15
Connector
Anderson connector
16
Operating Temperature
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 55°C
17
Storage Temperature
(Recommended to store 20 ± 5°C for long term storage)
18
Cycle Life
2000 times (80% of initial capacity at 0.2C rate, IEC Standard)

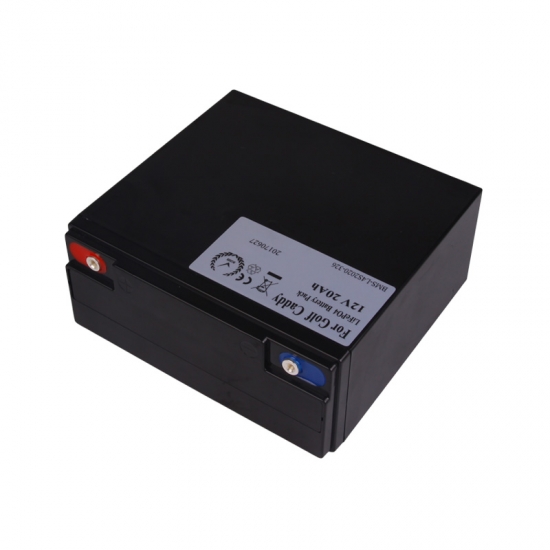

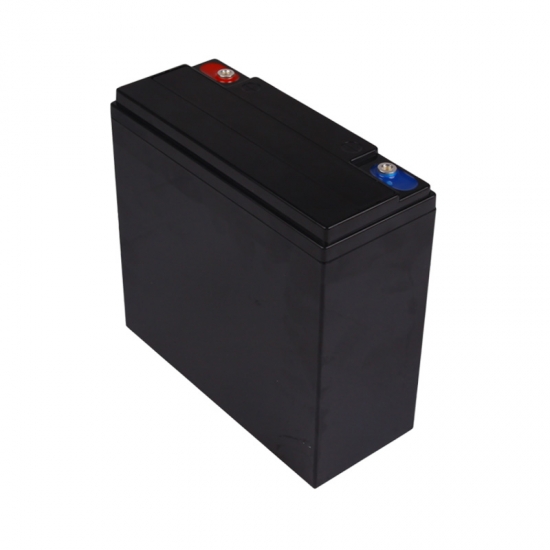

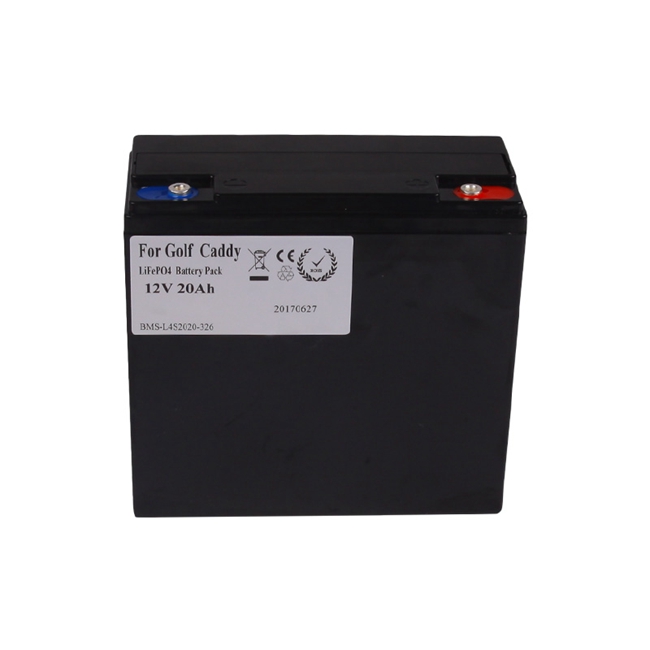

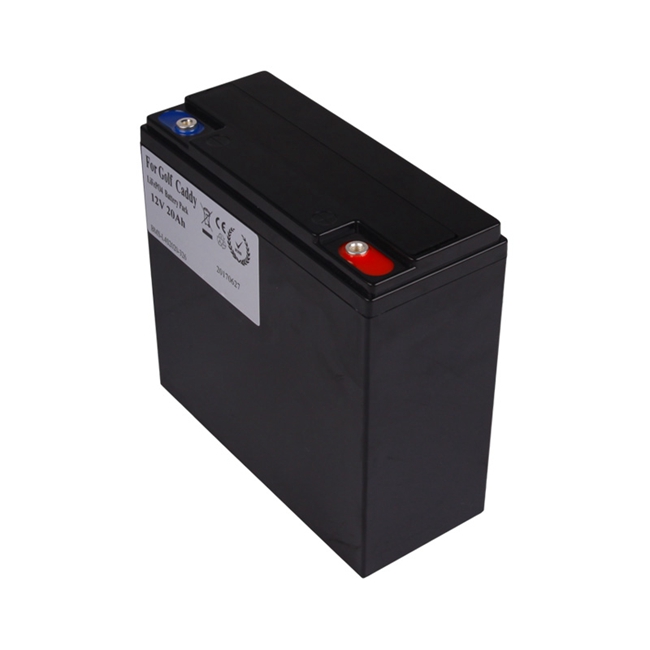

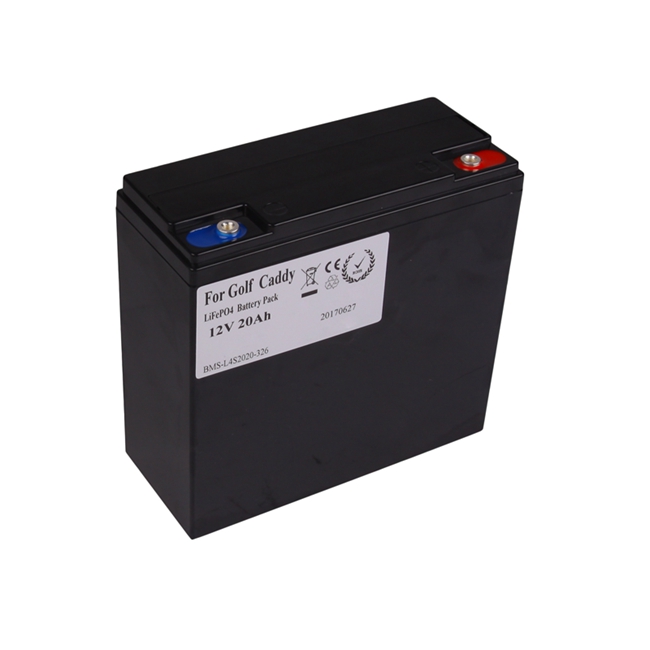

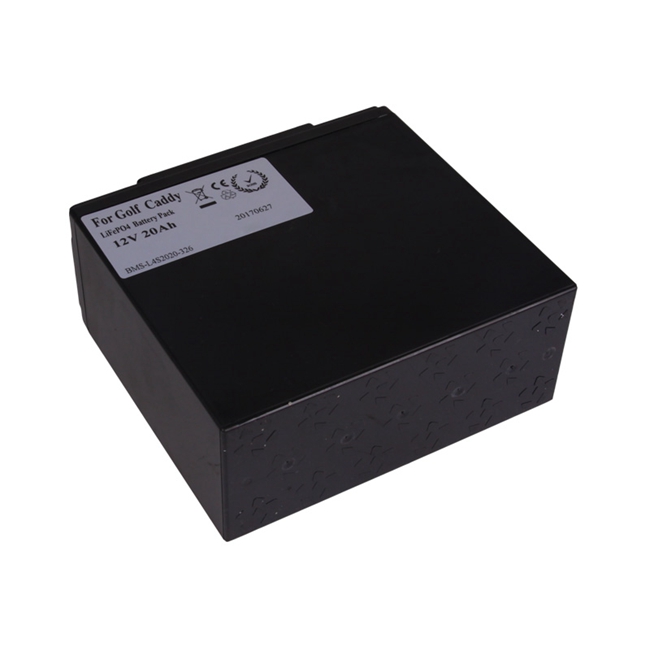

Detail Picture
Powerful performance
Fast charging ability
Flame-retardant and IP 65 water & dust proof housing
Maintenance-free if no parasitic drains
Nano LiFePO4 battery technology: Green energy, no toxic, and environment friendly
Competitive price and super long life
One-stop service for your low speed vehicles
Strong cell holders to protect each cell from vibration and overheating
Professional lithium LSV batteries monitored by sophisticated BMS with CAN bus or RS485,communications

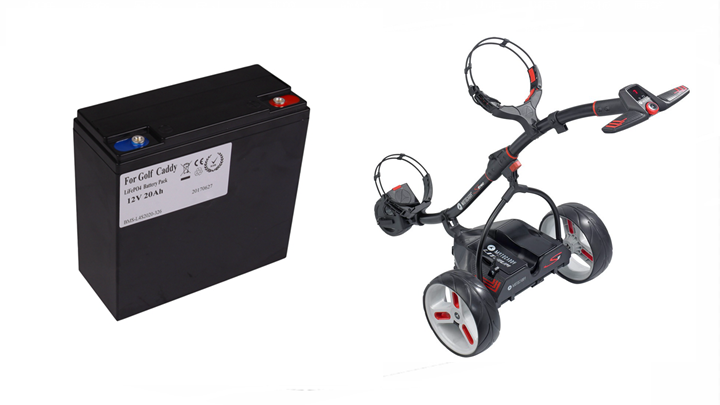

Application
Pakage: OEM gift box. We can also custom OEM design for you.
Come and get one. Email us at market@smartbatteryeco.com, call us at 0086-755-2937 1122; or you can send us message below, we will reply you in time.
The professional team to service !
