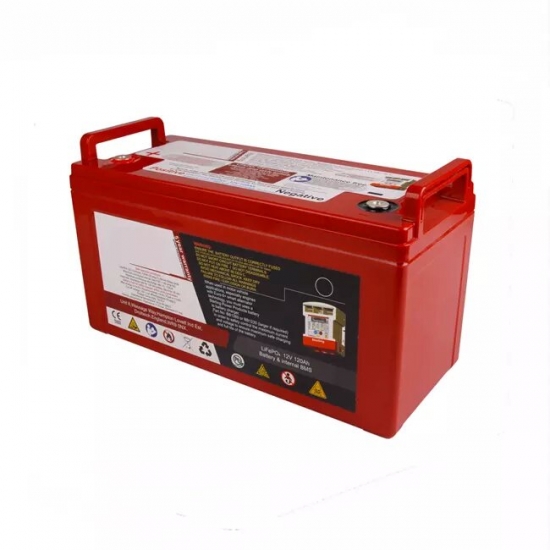

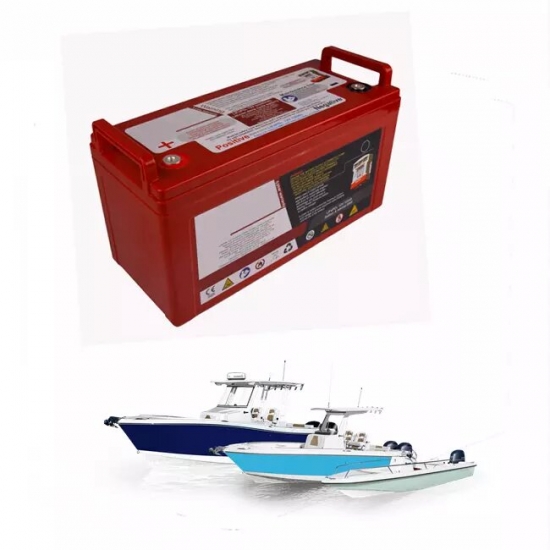

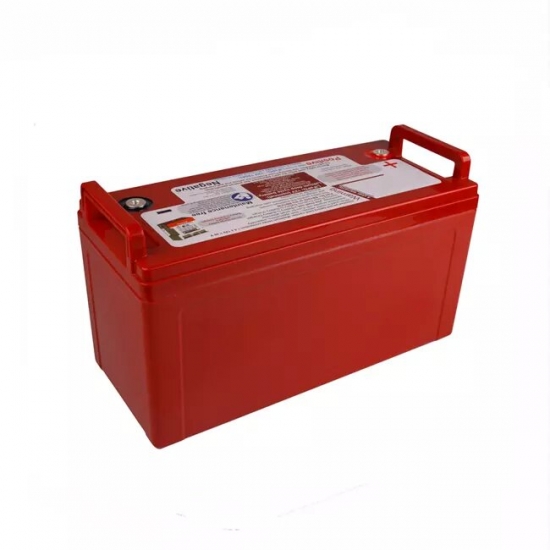

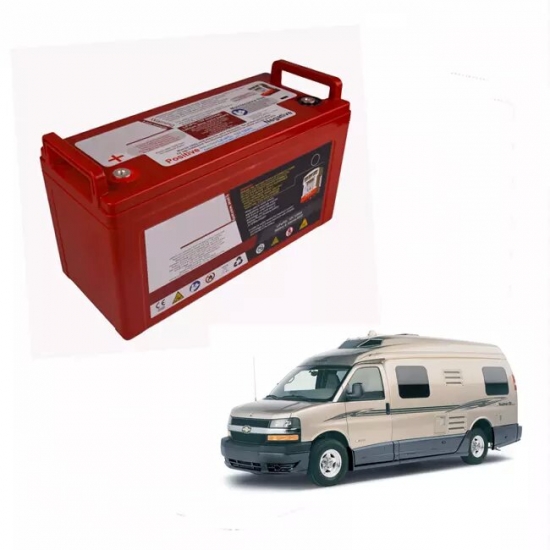

12v Lithium ion Battery 100Ah 150Ah EV RV LEV Marine Golf Cart Rechargeable Deep Cycle Custom Solar Battery Pack

No.

Items

Specifications

1

Nominal Voltage

12.8V

2

Nominal Capacity

150Ah

3

Cell Inside

LiFePO4 3.2V 120Ah cell

4

Configuration

4S1P

5

Standard Charge Current

0.2C-0.5C

6

Max. Charge Current

1C

7

Battery management System (BMS)

BMS-L4S120120

8

Continuous Discharge Current

100A

9

Peak Discharge Current

240

10

Full Charged Voltage

14.6V(3.65V per cell)

11

Charge Cut-off Voltage

15.6V  (3.9V per cell)

12

Discharge Cut-off Voltage

8V  (2.0V per cell)

13

Net Weight

14.76kg

14

Dimensions

L406*W170*H206(235mm)

15

Connector

threaded terminals

threaded terminals

16

Operating Temperature

Charging:  0°C ~ 45°C

Discharging: -20°C ~ 55°C

17

Storage Temperature

 (Recommended to store 20 ± 5°C for long term storage)

18

Cycle Life

2000 times (80% of initial capacity at 0.2C rate, IEC Standard)

NO

Item

Testing Procedure

Requirements

1

Nominal Capacity

0.5~1hr after standard charge, measure the capacity by discharging at constant current of 0.2C5A to the cut-off voltage of 8V at 20±5℃.

120Ah

2

Capacity at High Discharging Current

0.5~1hr after standard charge, measure the capacity by discharging at constant current of 1C5A.

Discharge time is no less than 51 minutes. no explosion.

3

Low Temperature Discharging

After standard charge, put the battery in a cooling box of  -10±2℃ for 16~24hr ,and then discharge the battery with constant current of 0.2C5A and keep record of the discharging time. After 2hr of standby at 20±5℃, check the performance of the battery pack.

Discharge time is no less than 3.5 hours. no explosion.

4

High Temperature Discharging

After standard charge, put the battery in a heating box of 55±2℃ for 2hr, and then discharge the battery with constant current 1C5A and keep record of the discharging time. After 2hr of standby at 20±5℃, check the performance of the battery pack.

Discharge time is not less than 51 minutes. no explosion.

5

Shelf Life

After standard charge, shelve the battery pack for 28 days at 20±5℃,and then discharge it with constant current of 0.2C5A ,recording the discharging time.

Discharge time is not less than 4.25 hours.

6

Cycle Life

Fully discharge the battery before this test ,then charge it with constant current  1C5A,when the voltage of the battery reaches the charge limited voltage , charge the battery with constant voltage until the charging current below 20mA,then have a 0.5h~1h rest period, next ,discharge with current 1C5A to the cut-off voltage .After a   0.5h~1h rest period ,begin next charge and discharge cycle. when two times over discharge time is less than 36min, life of the battery is end.

Cycle life is not less than 1000 cycles. No liquid leakage during the test.

NO

Item

Test Procedure

Requirements

1

Constant Humidity and Temperature

1. After standard charge, keep the battery for 48 hr in an insulated box at constant relative humidity of 90~95% and constant temperature of 40±2℃;

2. Take out the battery pack from the box and standby for 2hr at room temperature and check the battery;

3. Finally discharge the battery with constant current 0f 1C5A to the cut-off voltage and keep record of the discharging time.

No visible distortion, no rust, no smoke, no explosion. Discharging time is not less than 36min.

2

Vibration Test

1. After standard charge, fix the battery to an oscillatory board;

2. Cycle scan in three dimensions of X/Y/Z axis with a frequency from 10Hz to 55Hz for 30min, scan velocity of 1oct/min;

3. Check the appearance and measure the voltage of the battery.

Frequency: 10Hz~30Hz;

Displacement Amplitude/Single Amplitude: 0.38mm,

Frequency: 30Hz~55Hz;

Displacement Amplitude/Single Amplitude: 0.19mm.

No visible damage, no liquid leakage, no smoke, no explosion.

3

Impact Test

After the vibration test, fix the battery to the board in X/Y/Z axis three directions.

Pulse peak acceleration:  100m/s2;

Impact times /sec: 40~80;

Pulse duration: 16ms;

Impact times: 1000±10.

Check the appearance and measure the voltage of the battery.

No visible damage, no liquid leakage, no smoke, no explosion.
